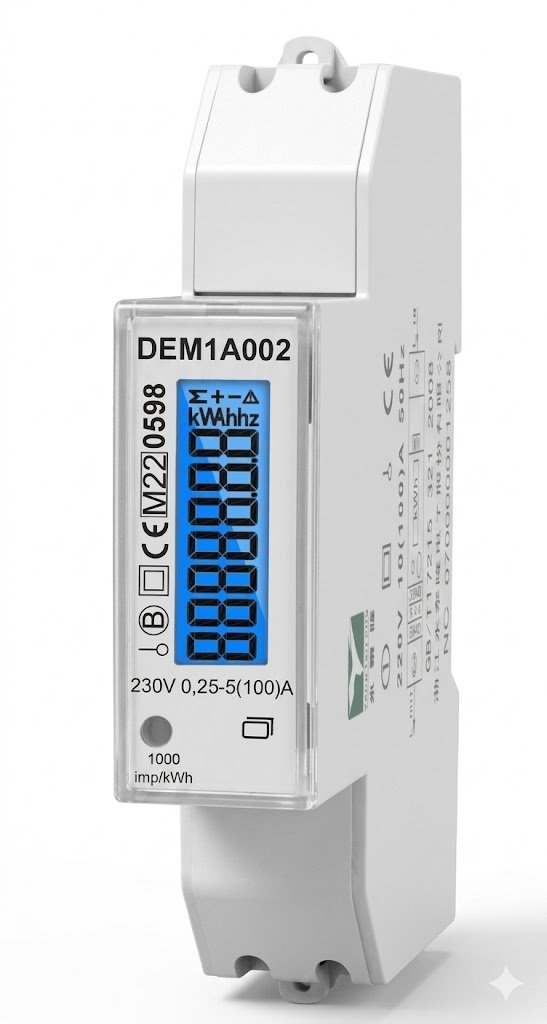

100A Din Rail kWh Meter DEM1A001
The DEM1A Series Digital Power Meter works directly connected to a maximum load 100A circuit. This meter has been MID B&D Certified by SGSUK, proving both it’s accuracy and quality. This certification allows this model to be used for any sub-billing application.
Features
- The lightweight 100Amp DIN Rail meter is only 18mm wide, just larger than a single DIN-Rail Module.
- It displays energy (kWh) on it’s blue backlit display.
- Dimensions 12 × 6.3 × 4.5 cm
- Smart: No
- Input Type: Direct Connection
- Output Type: Pulse
Technical Information:
- Standard: EN50470-1/3
- Rated Voltage: 230V
- Rated Current: 0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,0,25-5(45)A, 0,25-5(50)A,0,25-5(60)A, 0,25-5(80)A,0,25-5(100)A
- Impulse Constant: 1000 imp/kWh
- Frequency: 50Hz/60Hz
- Accuracy Class: B
- LCD Display: LCD 5+2 = 99999.99kWh
- Working Temperature: -25～70℃
- Storage Temperature: -30~70℃
- Power Consumption: <12VA <1W
- Average Humidity: ≤75% (Non Condensing)
- Maximum Humidity: ≤95%
- Start Current: 0.004Ib
- Case Protection IP51 indoor
