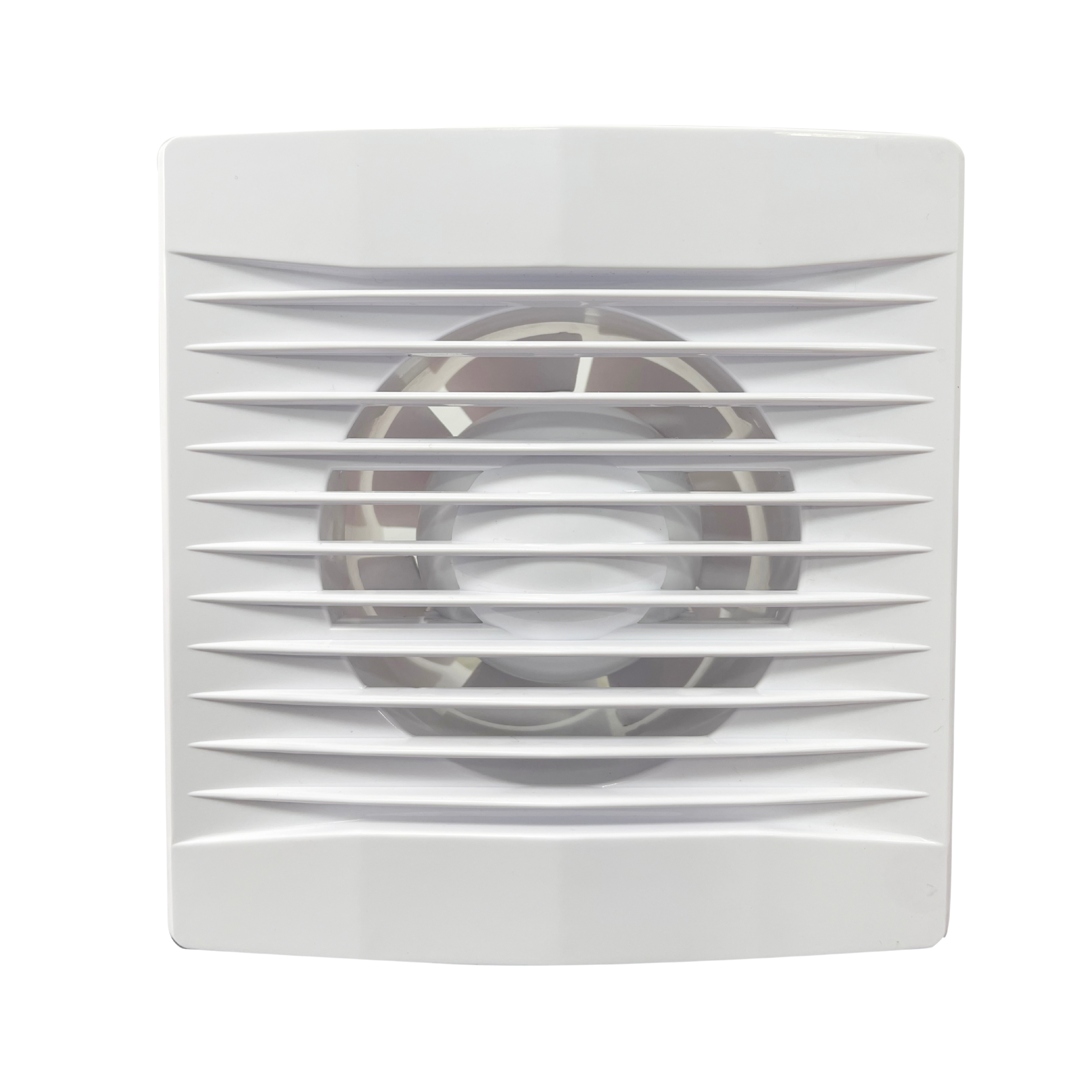

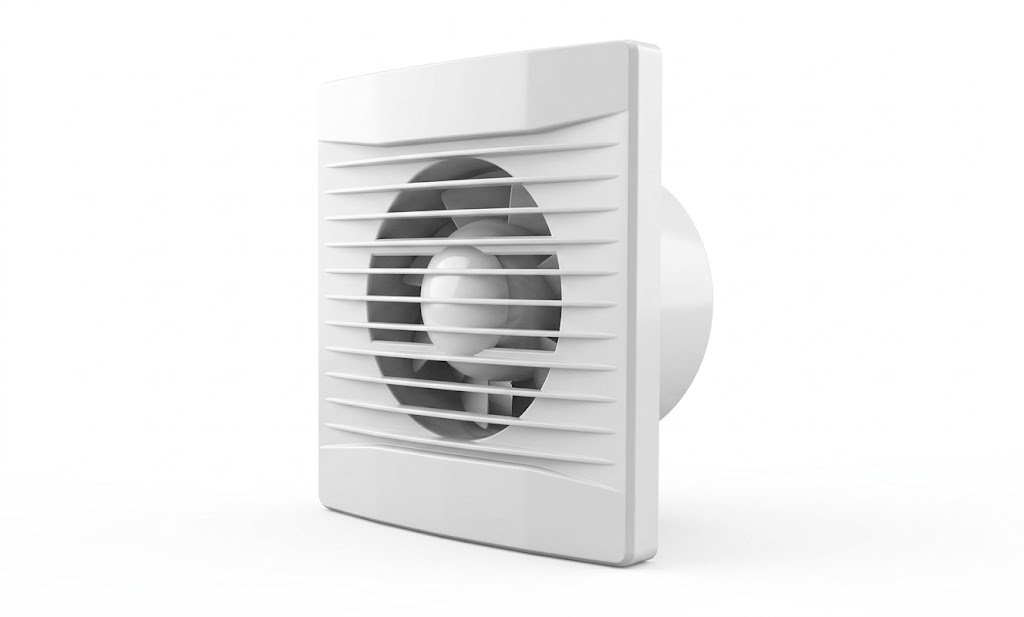

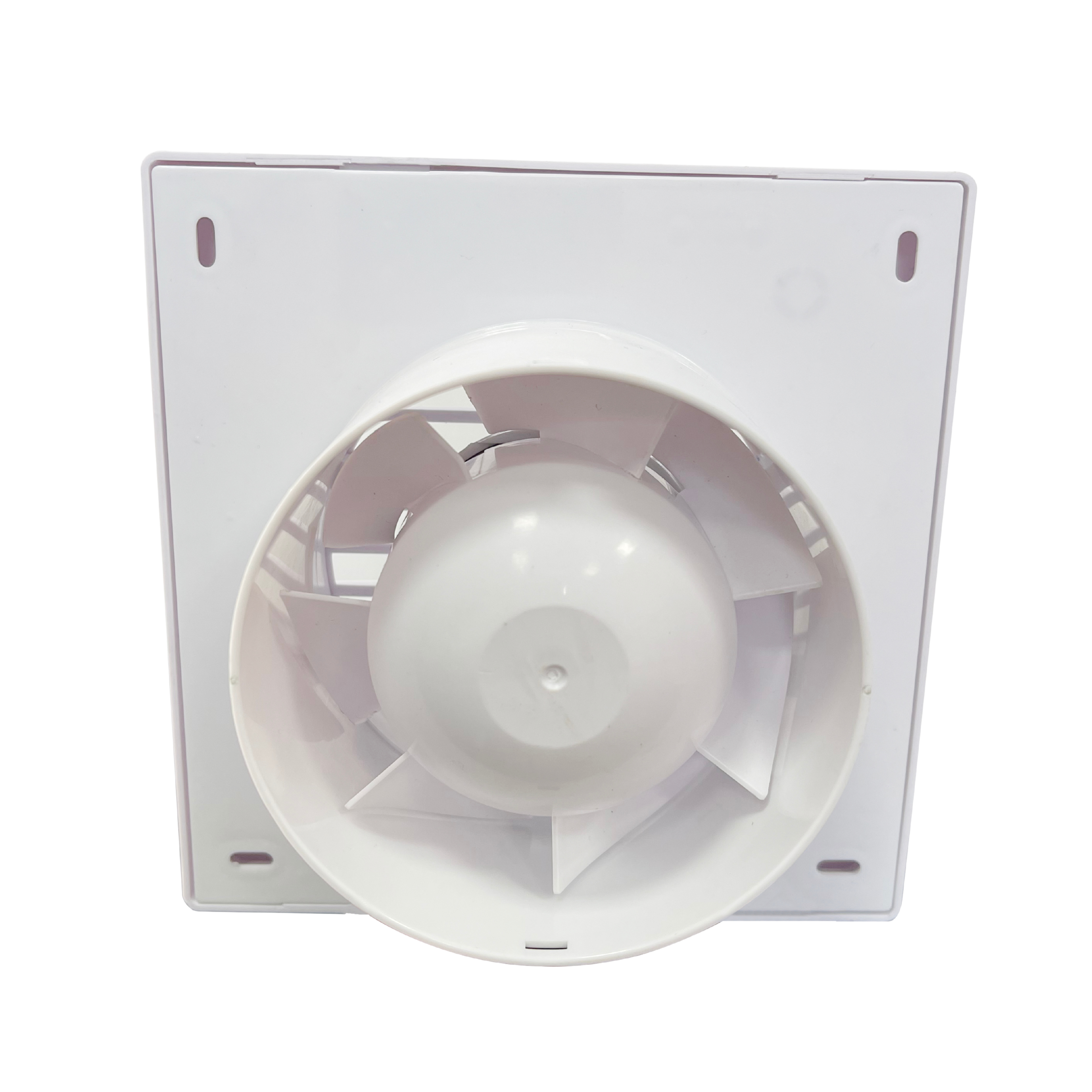

Download Product SpecificationAlpine Extractor Fan | 4" 100mm APL100S
The Alpine extractor fans are a high performance low noise extractor fan designed to meet the current building regulations. These sleek fans come as standard with an IP rating of IPX4 and offer an airflow of 23l/s at just 40dB. Their low profile design allows a neat finish against the wall while not compromising on the efficiency.
Key Features
• Designed to work effectively in bathrooms, these axial fans can be wall or ceiling mounted• Low Noise operation at just 40dB
• Low power consumption at just 15W
• Impressive extraction rate of 85m3/hr or 23 litres per second
• Motor Speed of 2400 RPM

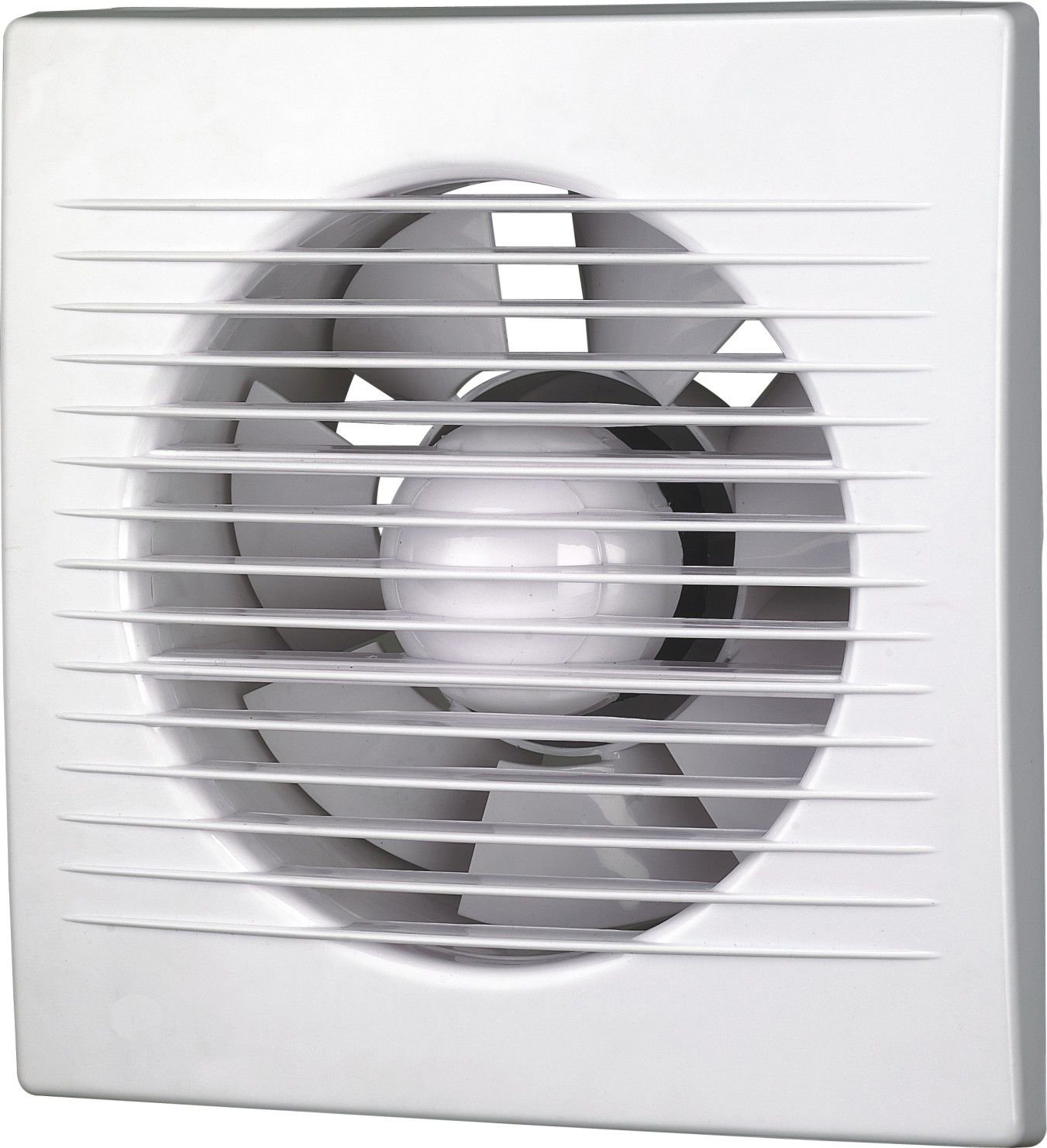

• Available as Standard or Timer Model
• Power is supplied by a single phase induction motor with pre-oiled bearings for a long, maintenance free life.
Safety:
• Single phase consuming 15W
• Double insulated so no earth required
• Double pole isolating switch must be used
• Fan should not be accessible to a person in the shower or bath
• Fans should be mounted at least 1.8M from the floor
• Max Operating Temperature +60°C
• IP Rating IPX2
